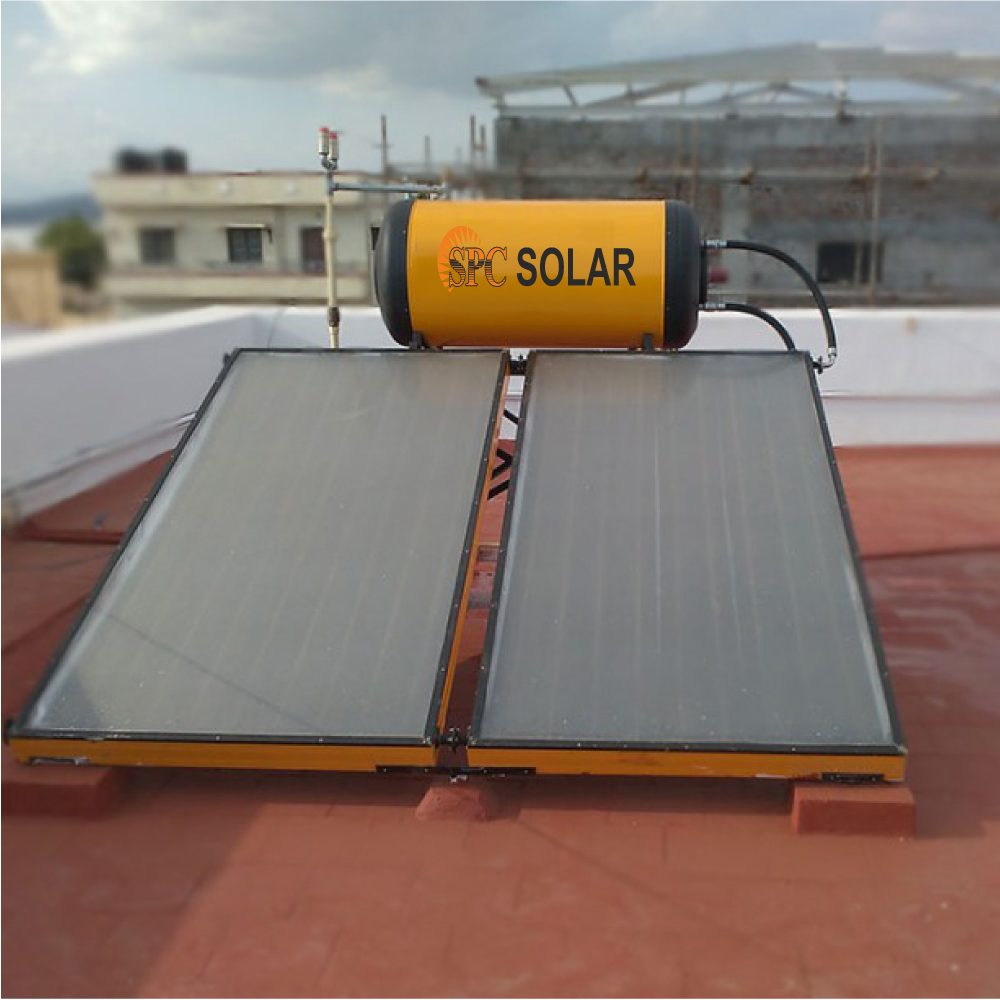

HOT WATER STORAGE (FPC Pressurized -200Lpd)
Technical Specifications | Detailed Description |
---|---|
Tank Design | Steel Tank with Deep Drawn End Dish as per Indian Boiler Code Design Standards |
Tank Capacity Excluding Tubes (Excluding the tube Volume) | 201 liters |
Tank Material | MS |
Tank Wall thickness ( Shell & Dish) | 3 mm & 3 mm |
Tank Primary Corrosion Protection Coating | 3 Layer High Build Ceramic Filled Food Grade Epoxy Coating |
Tank Secondary Corrosion Protection | Magnesium Alloy / Aluminum Alloy based self Sacrificial Anode System |
Resistance to Corrosion against Hard water ( PPM ) | Upto 600 PPM |
Maintenance Doors on the Tank Dish ends | Yes |
Outer Tank Cladding | Galvanized Steel Pure Polyester UV Resistant Power Coating |
Pipe Termination | Stainless Steel - SS- 304 Grade |
Back Up Electrical Booster | Suitable Electrical Booster Fixing Provision Built in the Tank |
Insulated Tank size | 580 mm Diameter x 1338 mm Long |
Area Required to install ( Approx) | 6 Sqr M |
SOLAR WATER COLLECTOR (FPC Pressurized -200Lpd)
Technical Specifications | Detailed Description |
---|---|
Collector Size | 2035 x 1035 x 95 |
Collector Absorber Area | 2.02 square Meter |
Collector Absorber Material | High Quality Electrolitic Copper Riser Pipe12.7 mm Diameter & Copper Fin |
Collector Absorber Coating | " NALSUN " Selective Coating - Absorbtivity > 0.90 & Emmisivity < 0.20 |
Number of absorber fins | 9 Fins Per collector |
Collector Box Material | Corrosion Resistant Extruded Aluminium Profile with Stainless Steel Fasteners , Pure Polyster Powder Coated |
Collector Glazing | High Transmissivity - Textured Solar Glass - 3.2 mm Thick Toughened Glass - Transmissivity > 80% |
Collector Insulation | Rock wool insulation - 40 mm Bottom & 20 mm Sides |
Header pipe | 25.4mm High Quality Electrolitic Copper |
Collector Back Sheet | Cold Rolled Corrosion Resistant Aluminium Sheet |
Number of collectors per System | 2 |
Grommet & Gaskets | EPDM |
Working Pressure | 3 Kg / Sq cm |
STRUCTURE DETAILS (FPC Pressurized -200Lpd)
Technical Specifications | Detailed Description |
---|---|
Structure Material | Steel Angle to ISI Specification |
Structure Design | Modular Design Steel Angle with Mig Welding |
Corrosion Protection | Pure Polyester UV Resistant Power Coating |
